Manufacturer: Conrad Scale: 1:50th Price: $235.00
Dimensions: L:267mm, W:79mm, H:87mm Weight: 1400g

Right:
The outriggers are
implemented with
pads that have a
sliding movement
and hidden screw
thread.

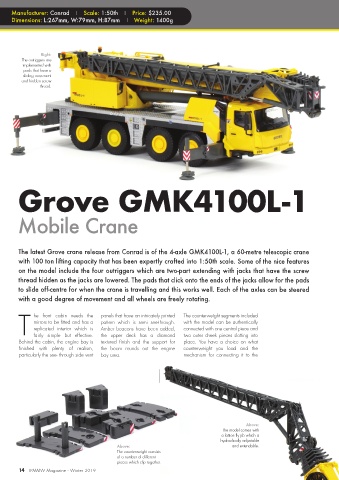

Grove GMK4100L-1

Mobile Crane

The latest Grove crane release from Conrad is of the 4-axle GMK4100L-1, a 60-metre telescopic crane
with 100 ton lifting capacity that has been expertly crafted into 1:50th scale. Some of the nice features
on the model include the four outriggers which are two-part extending with jacks that have the screw
thread hidden as the jacks are lowered. The pads that click onto the ends of the jacks allow for the pads
to slide off-centre for when the crane is travelling and this works well. Each of the axles can be steered
with a good degree of movement and all wheels are freely rotating.

T he front cabin needs the panels that have an intricately printed The counterweight segments included
mirrors to be fitted and has a
pattern which is semi see-through.
with the model can be authentically
connected with one central piece and
Amber beacons have been added,
replicated interior which is
fairly simple but effective.
textured finish and the support for
Behind the cabin, the engine bay is the upper deck has a diamond two outer cheek pieces slotting into
place. You have a choice on what
finished with plenty of realism, the boom rounds out the engine counterweight you load and the
particularly the see- through side vent bay area. mechanism for connecting it to the

Left:
The model has accurately
captured the range of
movement well.

Above:
The model comes with
a lattice fly jib which is
hydraulically adjustable
Above: and extendable.
The counterweight consists
of a number of different
pieces which clip together.
