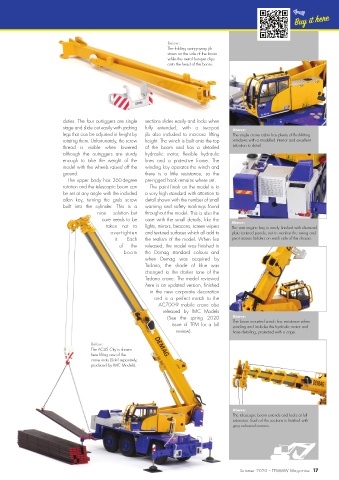

                                                            Below:
                                                            The folding swing-away jib
                                                            stores on the side of the boom
                                                            while the metal bumper clips
                                                            onto the head of the boom.










                       duties. The four outriggers are single  sections slides easily and locks when
                       stage and slide out easily with jacking  fully  extended,  with  a  two-part  Above:
                       legs that can be adjusted in height by  jib  also  included  to  increase  lifting  The single crane cabin has plenty of flush-fitting
                       rotating them. Unfortunately, the screw  height. The winch is built onto the top  windows with a modelled interior and excellent
                       thread  is  visible  when  lowered  of  the  boom  and  has  a  detailed  attention to detail.
                       although  the  outriggers  are  sturdy  hydraulic  motor,  flexible  hydraulic
                       enough  to  take  the  weight  of  the  lines  and  a  protective  frame.  The
                       model with the wheels raised off the  winding key operates the winch and
                       ground.                      there  is  a  little  resistance,  so  the
                          The upper body has 360-degree  pre-rigged hook remains where set.
                       rotation and the telescopic boom can     The paint finish on the model is to
                       be set at any angle with the included  a very high standard with attention to
                       allen  key,  turning  the  grub  screw  detail shown with the number of small
                       built  into  the  cylinder.  This  is  a  warning and safety markings found
                                   nice      solution  but  throughout the model. This is also the
                                     care needs to be  case with the small details, like the  Above:
                                      taken  not  to  lights, mirrors, beacons, screen wipers  The rear engine bay is nicely finished with diamond
                                        overtighten  and textured surfaces which all add to  plate textured panels, not to mention the swing and
                                         it.   Each  the realism of the model. When first  pivot access ladders on each side of the chassis.
                                           of   the  released, the model was finished in
                                            boom    the  Demag  standard  colours  and
                                                    when  Demag  was  acquired  by
                                                    Tadano,  the  shade  of  blue  was
                                                    changed  to  the  darker  tone  of  the
                                                    Tadano crane. The model reviewed
                                                    here is an updated version, finished
                                                      in  the  new  corporate  decoration
                                                       and  is  a  perfect  match  to  the
                                                         AC700-9  mobile  crane  also
                                                          released  by  IMC  Models
                                                            (See  the  spring  2020  Above:
                                                             issue  of  TPM  for  a  full  The boom mounted winch has resistance when
                                                                                   winding and includes the hydraulic motor and
                                                               review).            hose detailing, protected with a cage.

                                 Below:
                                 The AC45 City is shown
                                 here lifting one of the
                                 crane mats (Sold separately,
                                 produced by IMC Models).








                                                                                   Above:
                                                                                   The telescopic boom extends and locks at full
                                                                                   extension. Each of the sections is finished with
                                                                                   grey coloured corners.
