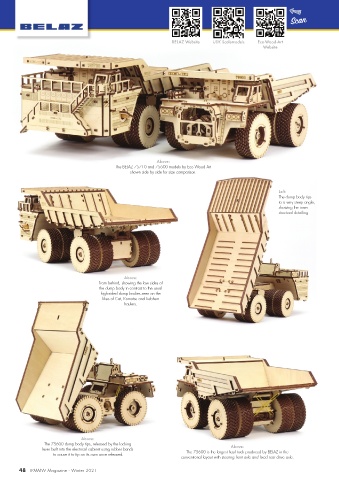

Above:
The BELAZ 75710 and 75600 models by Eco Wood Art
shown side by side for size comparison.

Left:
The dump body tips
to a very steep angle,
showing the inner
structural detailing

Above:
From behind, showing the low sides of
the dump body in contrast to the usual
high-sided dump bodies seen on the
likes of Cat, Komatsu and Liebherr
haulers.

Above:
The 75600 dump body tips, released by the locking
lever built into the electrical cabinet using rubber bands Above:
to cause it to tip on its own once released. The 75600 is the largest haul truck produced by BELAZ in the
conventional layout with steering front axle and fixed rear drive axle.
