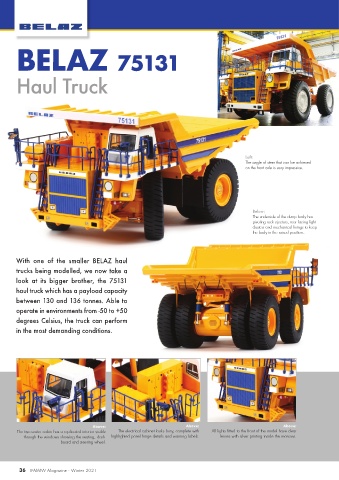

BELAZ 75131

Haul Truck

Left:
The angle of steer that can be achieved
on the front axle is very impressive.

Below:
The underside of the dump body has
pivoting rock ejectors, rear facing light
clusters and mechanical fixings to keep
the body in the raised position..

With one of the smaller BELAZ haul

trucks being modelled, we now take a
look at its bigger brother, the 75131
haul truck which has a payload capacity
between 130 and 136 tonnes. Able to

operate in environments from -50 to +50
degrees Celsius, the truck can perform
in the most demanding conditions.

Above: Above: Above:
The two-seater cabin has a replicated interior visible The electrical cabinet looks busy, complete with All lights fitted to the front of the model have clear
through the windows showing the seating, dash- highlighted panel hinge details and warning labels. lenses with silver printing inside the recesses.
board and steering wheel.
