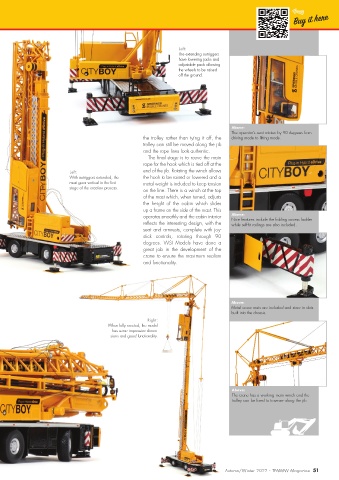

Page 51 - TPM Issue12

Buy it here

Left:
The extending outriggers
have lowering jacks and
adjustable pads allowing
the wheels to be raised
off the ground.

Above:
The operator’s seat rotates by 90 degrees from
the trolley rather than tying it off, the driving mode to lifting mode.
trolley can still be moved along the jib
and the rope lines look authentic.
The final stage is to reeve the main
rope for the hook which is tied off at the
end of the jib. Rotating the winch allows
Left:
With outriggers extended, the the hook to be raised or lowered and a
mast goes vertical in the first metal weight is included to keep tension
stage of the erection process.
on the line. There is a winch at the top
of the mast which, when turned, adjusts
the height of the cabin which slides
up a frame on the side of the mast. This
operates smoothly and the cabin interior Above:
Nice features include the folding access ladder
reflects the interesting design, with the while self-fit railings are also included.
seat and armrests, complete with joy-
stick controls, rotating through 90
degrees. WSI Models have done a
great job in the development of the
crane to ensure the maximum realism
and functionality.

Above:
Metal crane mats are included and store in slots
built into the chassis.
Right:
When fully erected, the model
has some impressive dimen-
sions and good functionality.

Above:
The crane has a working main winch and the
trolley can be fixed to traverse along the jib.
