Volvo EC460C LD Tracked Excavator

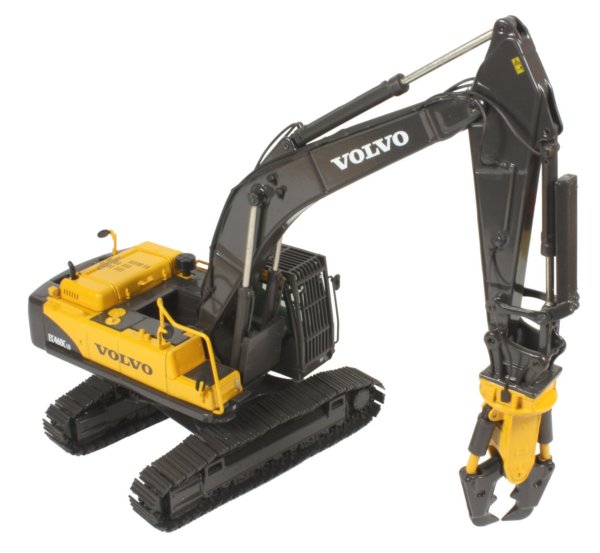

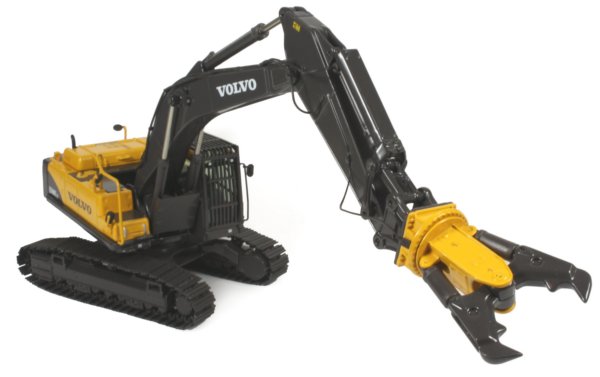

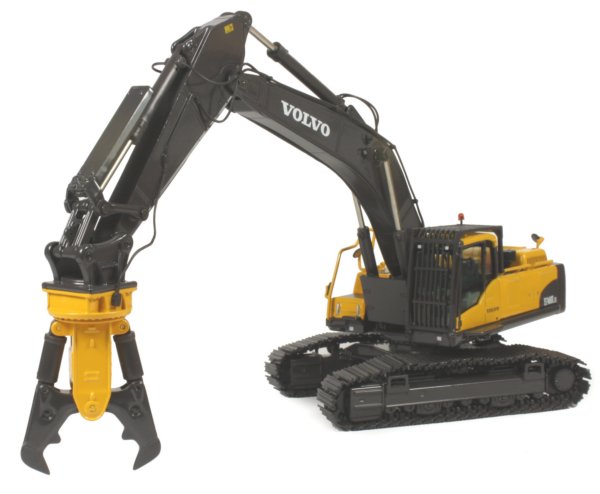

Presented here is the 1:50th scale Volvo EC460C LD demolition spec tracked excavator from NZG. This is an interesting variant on the previously released standard EC460C tracked excavator and at first glance, the only difference appears to be the crusher attachment and guarded cab. On further examination, there are a number of small differences including the extended upper structure frame to protect the body panels (Shown on the picture below), the small access platform below the cab and the protective covers on the main lift and bucket tilt hydraulics.

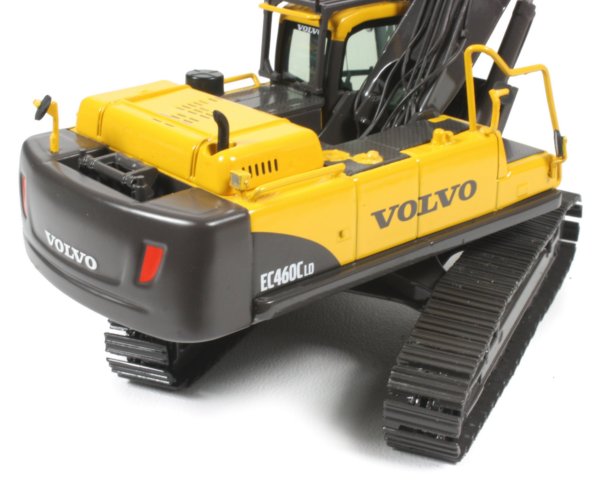

The rear counterweight casting has been accurately modelled with inset areas for the reflective panels and a non-functional counterweight installation system which is visible both below and above the model. The underside of the body has panel detailing for added realism which is good to see.

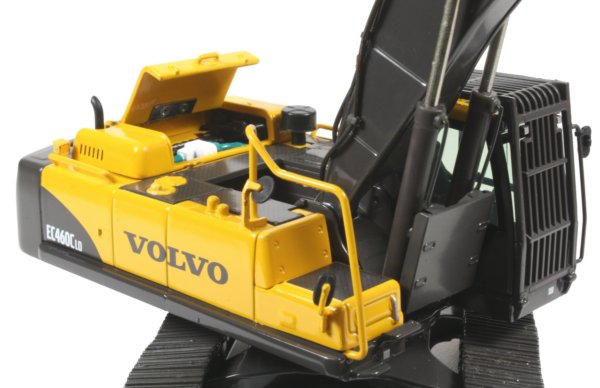

The opening engine compartment reveals a packed interior with the prominent Volvo branded engine block and cooling pipes all visible. The upper deck surfaces have been finished with dark grey paintwork with small black printed dots which give it an unusual appearance. The hydraulic distribution block has been replicated at the heart of the chassis with flexible piping placed on the rear of the boom

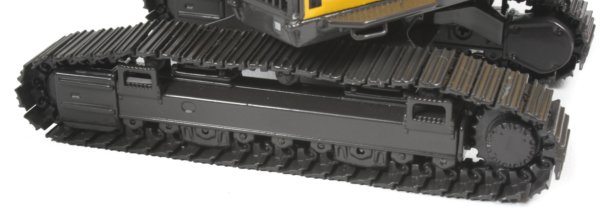

The undercarriage has been constructed with rotating lower rollers with the track frames having access steps with ridged grips cast into them. The drive sprocket has good tooth detailing with the fixing bolt detailing visible on the hub whilst the idler wheels are tensioned to keep the linked metal tracks taut. The triple grouser pads look good and use the familiar linking system whereby they clip into each other and use the tension to stay connected.
|
|

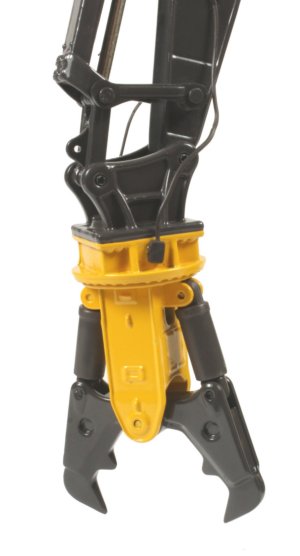

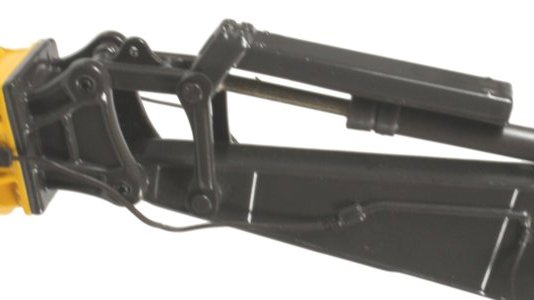

The digging attachment fitted to the stick is a primary concrete pulveriser which features opening jaws abd a 360 degree rotating headstock The range of movement of the bucket linkage is very realistic allowing the full movement of the full sized machine to be replicated which is good to see. The addition of a sliding protective shield on the linkage is another nice bit of engineering and slides smoothly through the full range of movement, keeping the piston covered.
Flexible hydraulic piping has been added to the boom and stick with the auxiliary piping used for the crusher attachment whilst crisply printed safety labels are found at the top of the stick with the Volvo name on the boom. |

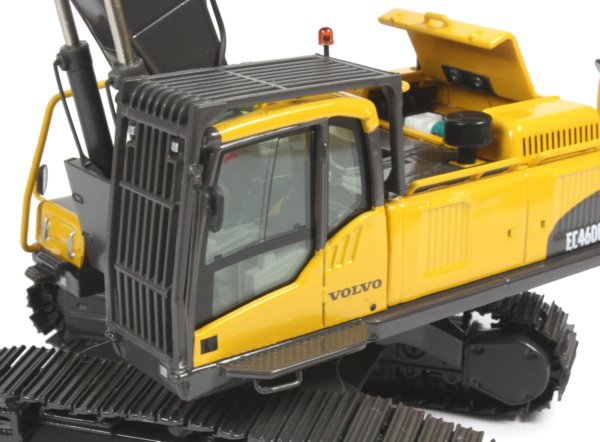

Accurately scaled safety rails have been added to the model along with rear view mirrors and a counterweight mounted safety mirror. The cab exterior has integrated roof lights and roof window with a photo-etched windscreen wiper and amber beacon whilst the slightly tinted windows have printed rubber seal detailing for a more realistic look.
You can just about make out the replicated cab interior through the tinted windows, with contoured seat and side console with joystick controls and systems display screen.The plastic cab guard features a well defined pattern of grills with integrated work lights and grab rails, complete with rear view mirror. Hot on the heels of the standard EC460C, the demolition spec version is a nice alternative and, as with the previous Volvo models from NZG, the paint finish is very good with sturdy packaging keeping the model secure during shipping.
