1:50th Scale Potain
IGO21 tower crane
This
is the new 1:50th scale Potain IGO21 fast erecting tower crane from
TWH which is distributed by NZG.
There
are 2 versions available, the standard version shown here and an
"American" version, finished in red. This model, like
the other TWH models, is supplied with a booklet describing the
machine in real life. The model features adjustable stabilisers
and both side compartments on the crane open to reveal the internal
workings of the machine.

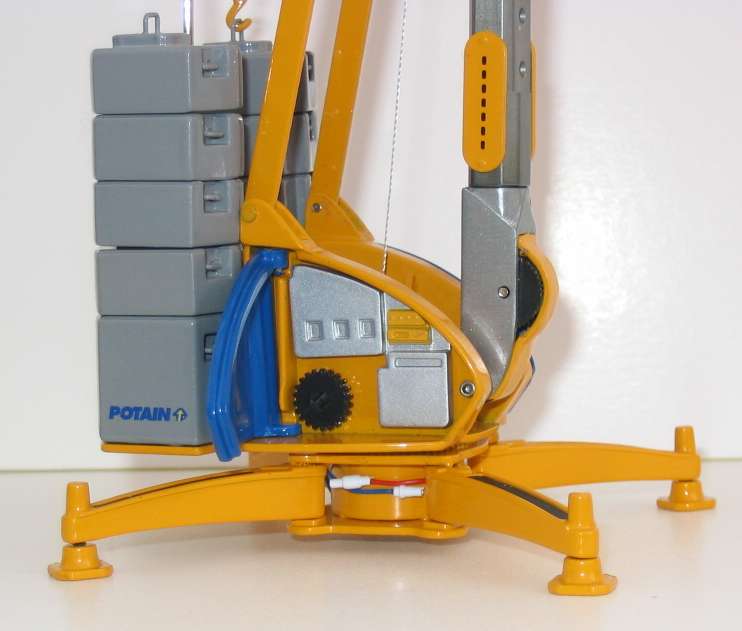

the picture above shows
the opening compartments on the model.

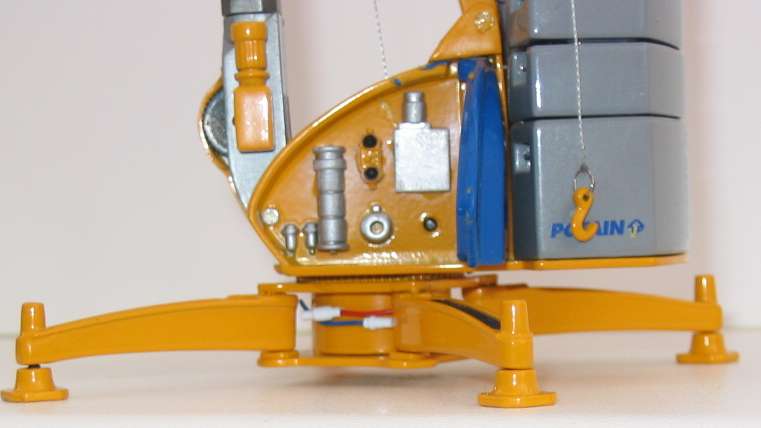

even the electric supply can be seen in the picture
above, allowing connection to either 240volts or 3 phase supplies.
The picture above also shows the main hook hoist.
|

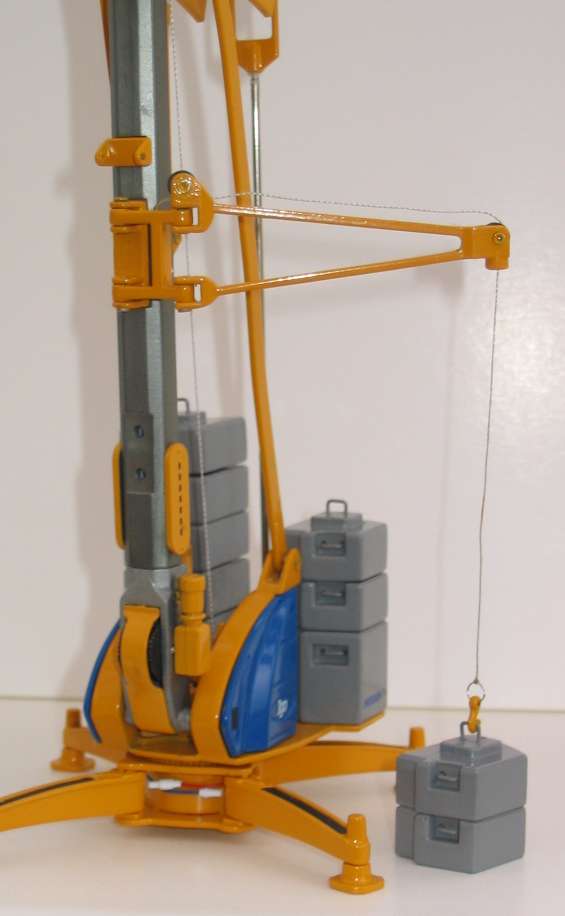

The picture on the left shows the
way the crane can be self assembled using the onboard
frame to allow the counterweights to be assembled without
the need for another crane.
This is done using the main hoist
and both sides of the crane can be reached by swinging
the frame around. This is a great addition to the model,
adding excellent details that are usually missed from
other manufacturers.
The trolley can be traversed using
the traversing drum mounted at the base of the boom.
This is relatively smooth once the crane has been fully
assembled.
The hook can be raised/lowered using
the main winch drum, accessed from inside the control
panel.
|

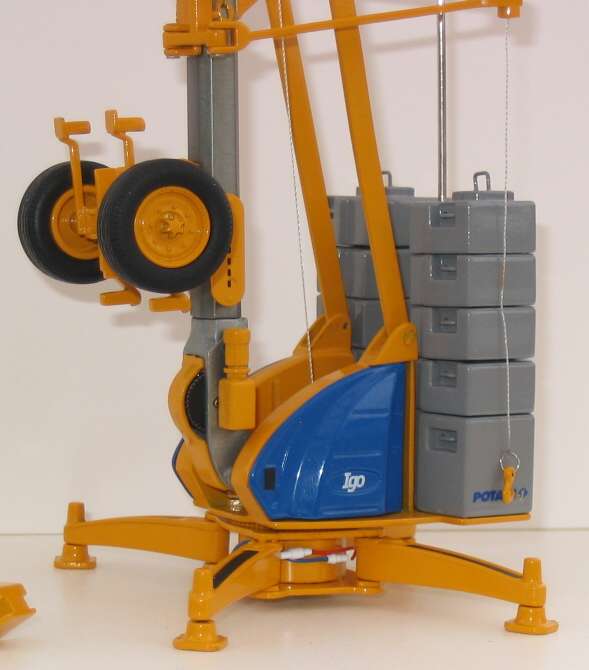

For transport, there is a wheel bogie that attaches
to the main structure. A second set of steering wheels connect
between the counterweights holder.

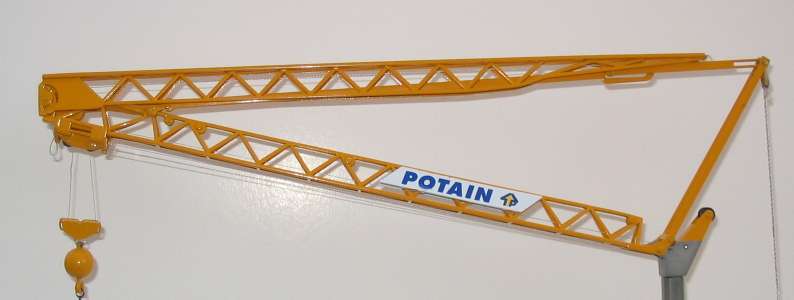

the jib can be angled if required, and is shown
here with the second half of the jib still in it's folded position.
This is a good, highly detailed model with plenty
of features. The main boom and jib are a little flimsy and do look
like they will bend very easily, so care needs to be used when erecting it.
|
