Models - The O&K RH300 Shovel

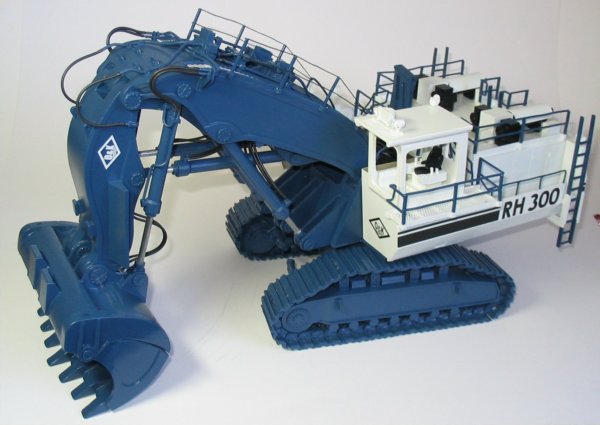

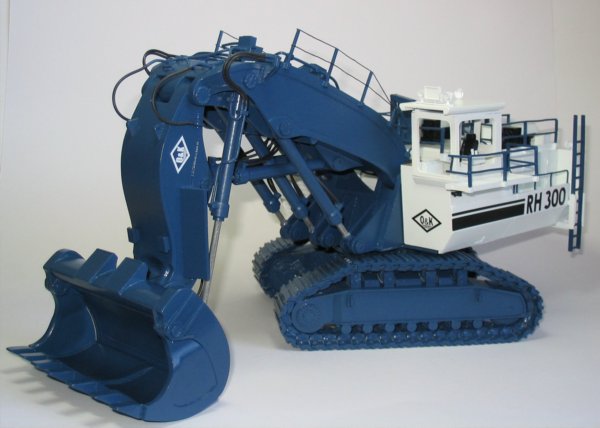

This is a
model that I have build from a kit by OHS Models. I have chosen to paint it in
a 2 tone blue/white colour
scheme. There is a lot of preparation required on the parts, especially
the white metal components which require a great deal of filing.

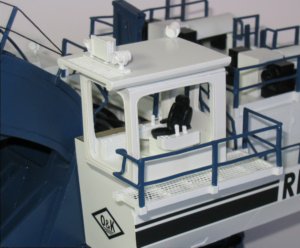

The cab is detailed inside and out with etched walkways, hand railings and operator controls.
|
|
|

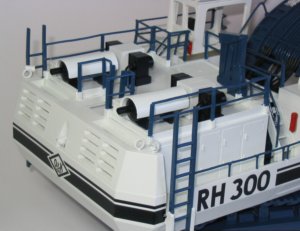

The
picture on the left shows the upper rear deck,
complete with service crane, walkways and hand railings.
|

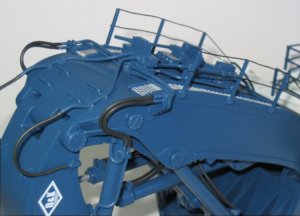

This
picture shows the boom detail, including the photo etched
walkways and hydraulic block with pipework.
The
main boom parts are made from resin which does help
with the weight of the model. the hydraulic block and
rods/cylinders are made from white metal with rubber
tubing for the hydraulic hoses.
|
|
|

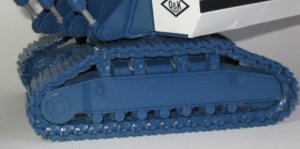

The
undercarriage is well detailed with rolling wheels,
idler and drive sprocket. The entire undercarriage is
made from white metal and gives good weight for stability.
The metal tracks are individually linked with authentic
grouser and bolt detail.
|

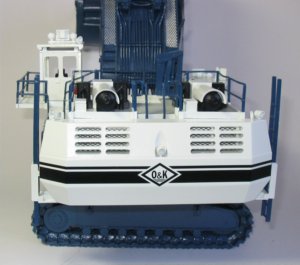

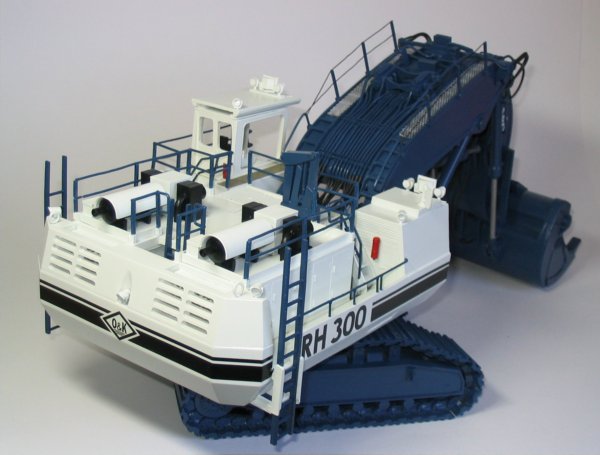

The
rear of the model is well detailed with internal radiators
visible throught the counterweight cut-outs.
There
are hand rails running all the way around the model
which have been finished in blue which makes them stand
out.
|
|
|
